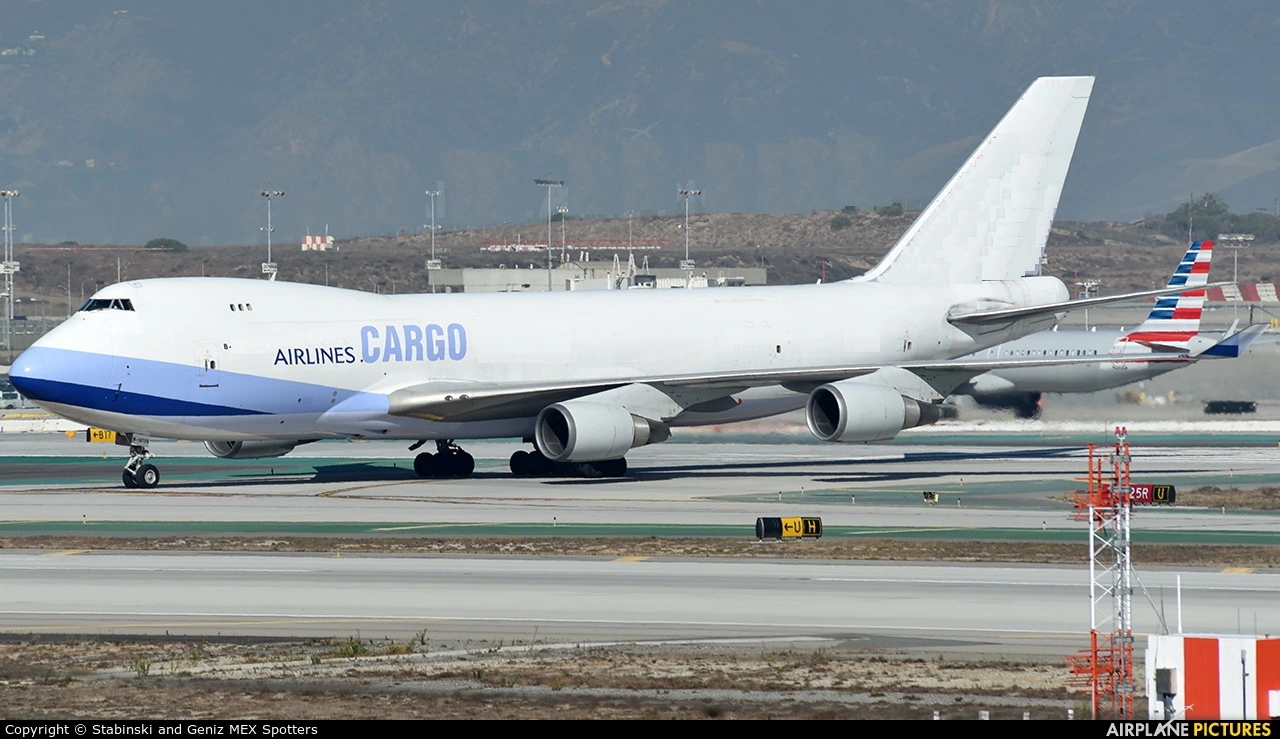

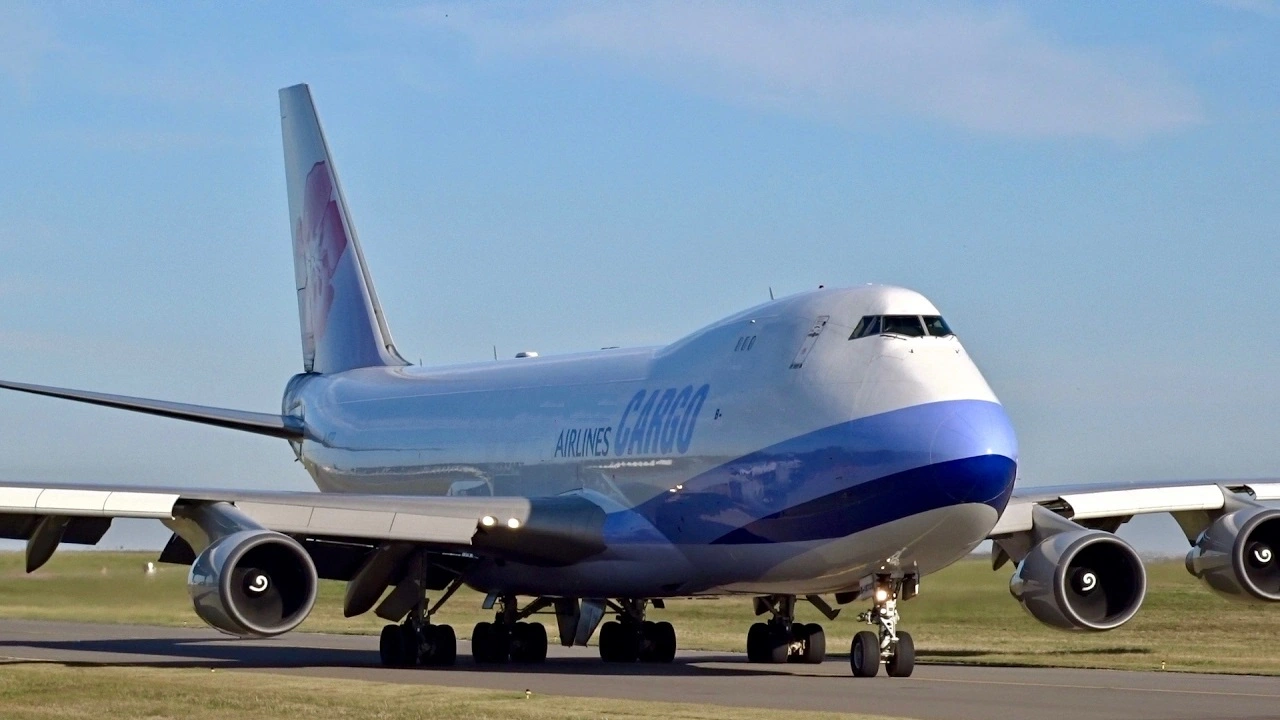

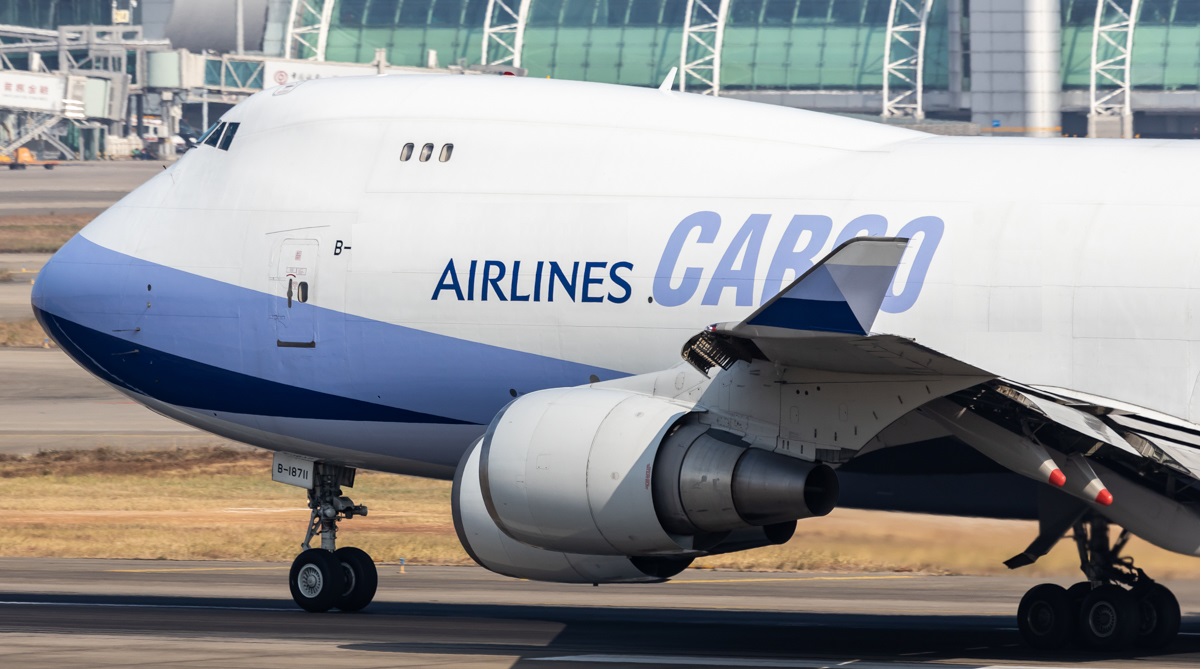

Cargo Airplane Jet Airplane 747-400F Classical Plane for Long term Freight Charter
Boeing 747-400F
1 unit
Quantity:
$49500000.00 - $49500000.00
/ unit
- Type:Cargo Airplane
- Condition:Used
- Place of Origin:Beijing, China
- Product name:Business Airoplane
- Usage:Aerial Surveying
- Application:Professional Aerial Mapping
- Wingspan:60.4m
- Max payload:124 300 kg
- Max take-off Weight:396,900 kg
- Max speed:0.845 Mach
- Endurance:4-11 Hrs
- Keywords:Long Flight Time
- Feature:Effective
Product Overview
Boeing 747-400F
Basic information:
Compartment Load Capacity
The Boeing 747-400F can carry loads of more than 100 tonnes on long-haul flights of up to 13 hours duration. It has side and nose loading doors so can transport a wide range of cargo.

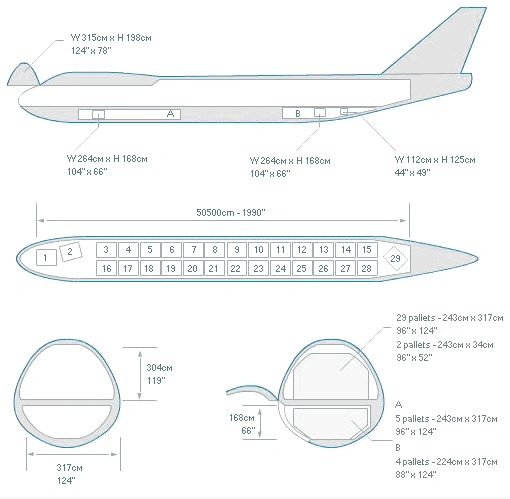

Compartment Load Capacity
Main: 29 – 96″ x 125″(244cm. X 318cm.)
Position 1: 1 – 88″ x 125″(224cm. X 318cm.)
Lower: 9 – 88″ x 125″ x 64″3,285 cu. ft (93.0 cu. m.)
OR: 9 – 96″ x 125″ x 64″3,855 cu. ft (109.2 cu. m.)
Lower Bulk Cargo Area: 920 cu ft (26 cu m)

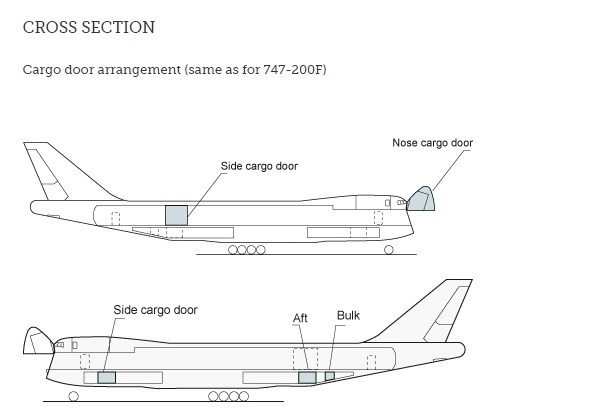

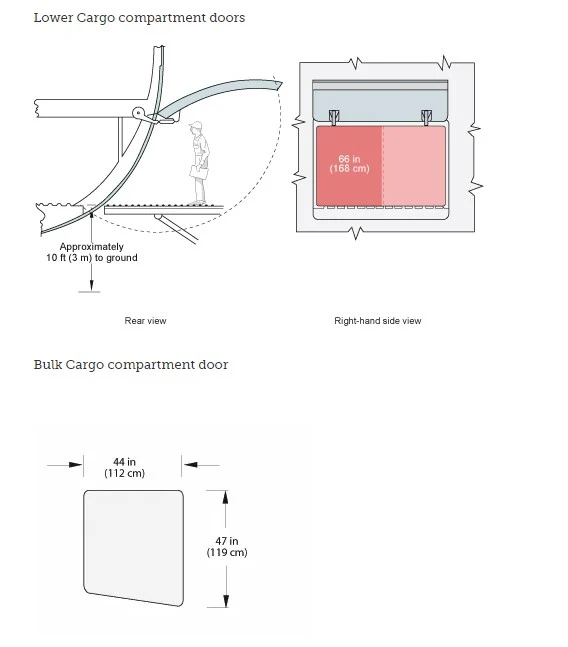

CargoDoor Dimensions
Main Cargo Door: 134″ x 120″ (340 cm. X 310 cm.)
Lower Forward Door 110″ x 104″ (168 cm. X 264 cm.)
Lower Aft Door 110″ x104″ (168 cm. X 264 cm.)
Lower Aft Bulk Door 44″ x 47″ (112 cm. X 119 cm.)
Boeing 747-400F Specifications
* Manufacturer: Boeing * Class: Large Cargo Airliner
* MTOW: 875,000 lb (396,890 kg) * Max Payload: 274,100 lb (124,330 kg)
Performance
* Cruise Speed: Mach 0.845 (498 kn; 922 km/h) * Range: 3,110 nmi (5,760 km)

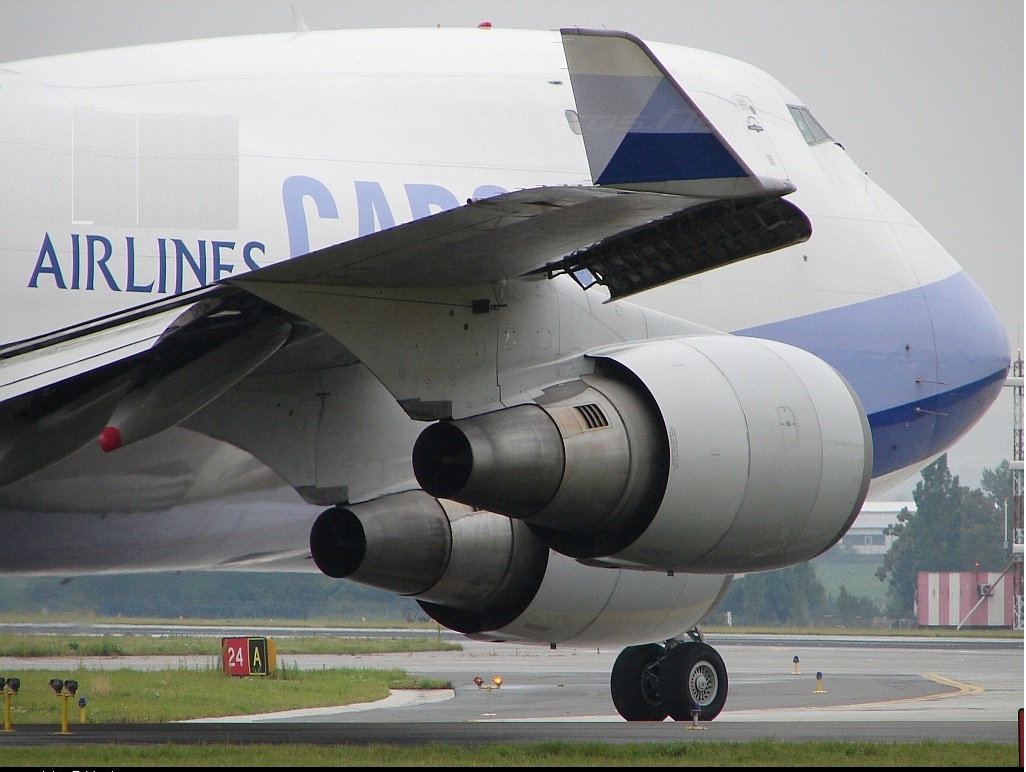

* Runway: 9,550 ft; 2,910 m(takeoff) * Engines: 4x PW4000 / GE CF6 / RR RB211
* Thrust: 56,400–63,300 lbf (251–282 kN) each
Dimensions
* Cargo Volume: * Main Deck: 21,462 cubic feet (607.7 m³) * Lower Hold: 4,601 cubic feet (130.3 m³)
* Bulk: 520 cubic feet (14 m³) * Height: 63 ft 8 in (19.41 m)
* Length: 231 ft 10 in (70.66 m) * Wingspan: 211 ft 5 in (64.44 m)
* Manufacturer: Boeing * Class: Large Cargo Airliner
* MTOW: 875,000 lb (396,890 kg) * Max Payload: 274,100 lb (124,330 kg)
Performance
* Cruise Speed: Mach 0.845 (498 kn; 922 km/h) * Range: 3,110 nmi (5,760 km)
* Runway: 9,550 ft; 2,910 m(takeoff) * Engines: 4x PW4000 / GE CF6 / RR RB211
* Thrust: 56,400–63,300 lbf (251–282 kN) each
Dimensions
* Cargo Volume: * Main Deck: 21,462 cubic feet (607.7 m³) * Lower Hold: 4,601 cubic feet (130.3 m³)
* Bulk: 520 cubic feet (14 m³) * Height: 63 ft 8 in (19.41 m)
* Length: 231 ft 10 in (70.66 m) * Wingspan: 211 ft 5 in (64.44 m)

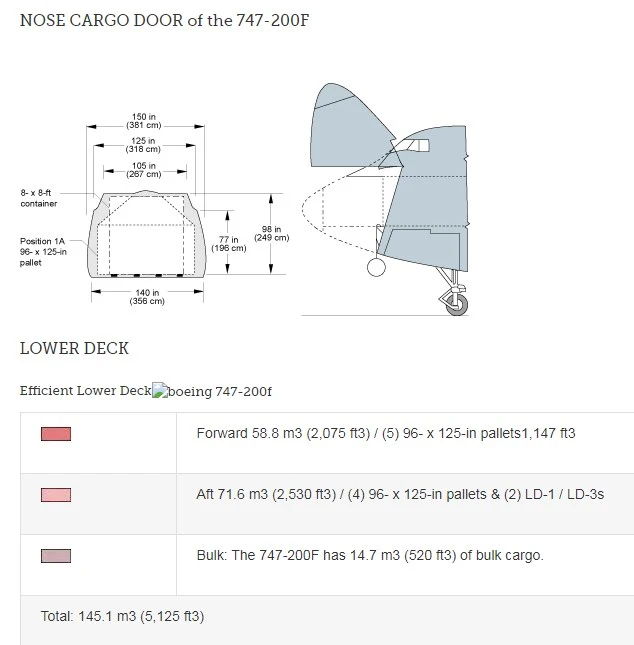

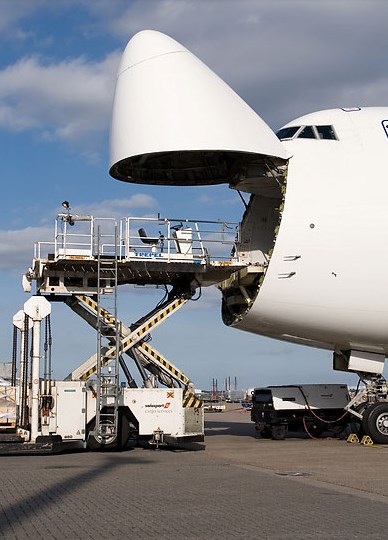

Nose Cargo Door
The 747-400F freighters have a hinged nose that flips up to allow extra large or extra long shipments to be loaded and unloaded. This will be a useful feature for large cargo or freight shipments.
FEATURES AT A GLANCE
PRODUCT CONFIGURATION
No | Item | Data |
1. | Maximum Range | 4,455 Nautical Miles 8,251 Kilometers |
2. | High-speed Cruise Speed | 522 knots 967 Km/h |
3 | Long-Range Cruise | Mach 0.84 555 MPH / 895 KPH |
4 | Maximum Cruise Altitude | 43,000 feet |
Weights | ||
5 | Maximum Takeoff | 874,993 lbs / 396,894 Kg |
6 | Empty Operating weight | 545,000 lbs / 247,207 Kg |
7 | Max Landing Weight: | 302,093 Kg / 665,994 lbs |
8 | Maximum Payload | 274 100 lbs / 124 300 kg |
9 | Maximum Fuel | 57,285 US Gal. / 216,847 Litres |
Measurements | ||
10 | Finished Height | 63 Ft 5 in 19.3 Mtrs |
11 | Finished Cabin Width | 20 Ft 6.1 Mtrs |
12 | Freight (underfloor) LD-1 | 6,190 Cu Ft 173.3 Cu Mtrs 30 x LD-1s |
13 | Cargo Baggage Volume: | 607 (cbm) |
14 | Cargo hold size: L x W x H | 187.01 x 20.11 x 8.33 (feet) 57 x 6.13 x 2.54 (metre) |
15 | Exterior Length | 231.85 Ft 10 In 70.67 Mtrs |
16 | Overall Wingspan | 212.99 Ft / 64.92 Mtrs |
Others | ||
17 | Seats up to | 2 |
18 | Rate of Climb: | 1500 feet / minute / 7.62metre / second |
19 | Engine | Pratt & Whitney PW4062, Thrust 54,750 lb (24,635 kg) Rolls-Royce RB211-524G/H Thrust 53,000 lb (23,850 kg) GE CF6-80C2B5F Thrust 52,500 lb (23,625 kg) |
20 | Take Off Distance | 3300 metre - 10,826.64 feet |
21 | Landing Distance | 2100 metre - 6,889.68 feet |
Details Images

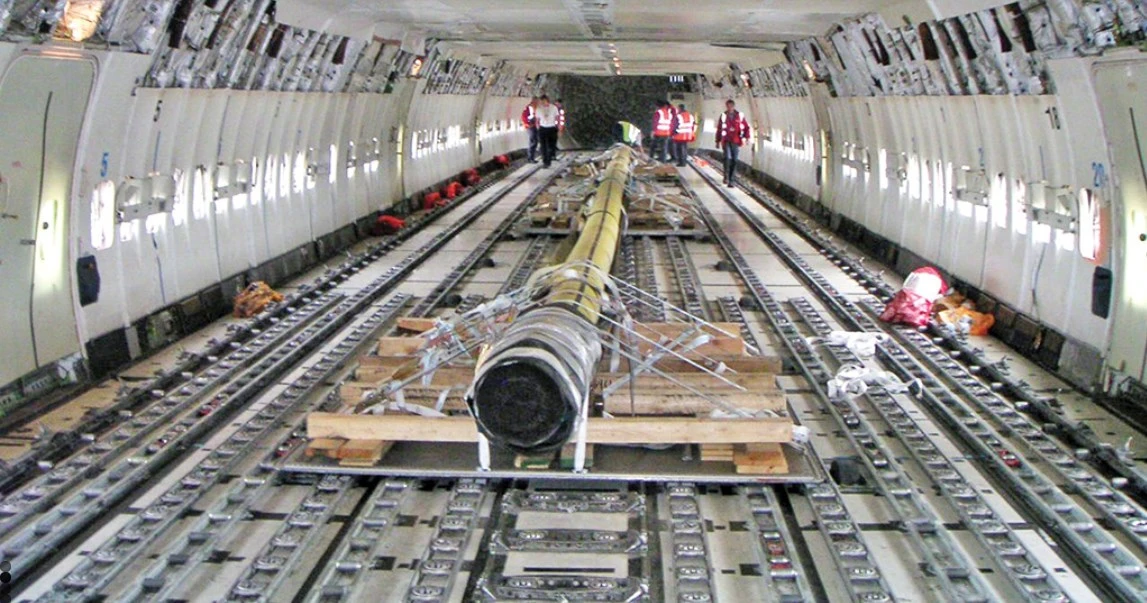

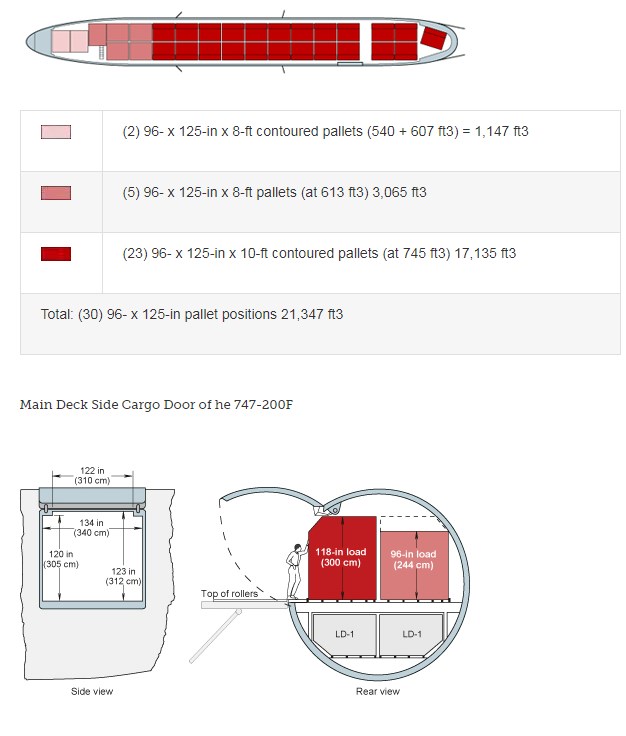

MAIN DECK
Efficient Decks of the 747-400F handles
